Golf¶
Golf sara.viz example.
>>> import textwrap
>>> from examples.golf import GolfSchema
>>> print(textwrap.fill(GolfSchema.Config.metadata["description"], width=80))
A simple golf environment. The objective is to shot a ball in a hole
Dataset¶
1000 episodes of 10 steps randomly generated
Q-table visualization¶
>>> from sara.oar import enrich_rtg, discount_from_horizon, bin_with_quantiles
>>> from sara.viz import plot_insight
>>> from examples.golf import env_pipeline
>>> df = env_pipeline()
>>> df = enrich_rtg(df, discount=.9)
>>> num_quantiles={
... ("act0", "move"): 3,
... ("obs0", "position"): 10,
... }
>>> df = bin_with_quantiles(df, num_quantiles)

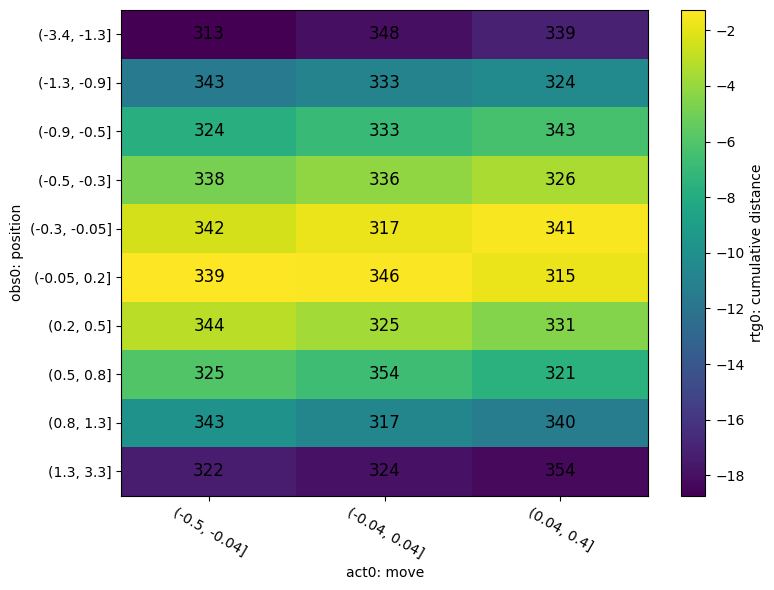

>>> _,_,_ = plot_insight(df, col_labels=list(num_quantiles),
... filename="docs/source/golf/golf.png")
Interpretation¶
When the ball is at the hole left, we should move right. Conversely, when the ball is at the hole right we should move left
API reference¶
- examples.golf.env_pipeline(num_episodes: int = 1000, len_episode: int = 10, seed: int = 42) DataFrame[GolfSchema][source]¶
Generates OAR dataframe for golf environment.
- Parameters:
num_episodes – number of episodes in the dataset
len_episode – number of steps in each episodes before truncation
seed – for random number generator
- Returns:
OAR dataframe with sampled data
- Return type:
DataFrame[GolfSchema]
Examples
>>> from examples.golf import env_pipeline >>> env_pipeline() signal obs0 act0 rew1 key position move distance episodes date 0 2000-01-01 10:00:00 0.176277 0.030472 -0.176277 2000-01-01 10:01:00 0.206749 -0.103998 -0.206749 2000-01-01 10:02:00 0.102750 0.075045 -0.102750 2000-01-01 10:03:00 0.177795 0.094056 -0.177795 2000-01-01 10:04:00 0.271852 -0.195104 -0.271852 ... ... ... ... 999 2000-01-01 10:05:00 0.486030 0.162011 -0.486030 2000-01-01 10:06:00 0.648040 -0.006318 -0.648040 2000-01-01 10:07:00 0.641722 0.008525 -0.641722 2000-01-01 10:08:00 0.650247 0.112474 -0.650247 2000-01-01 10:09:00 0.762722 -0.018285 -0.762722 [10000 rows x 3 columns]
